Drone Compare Autel EVO Lite
Drone specifications
Autel EVO Lite
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $1,149
- Weight
- 835 g
- Max Flight Time
- 40 min
- Max Speed
- 18 m/s
EVO Lite overview

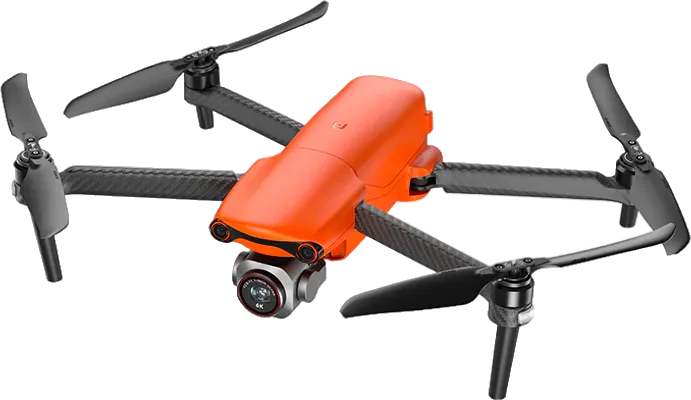

The Autel EVO Lite is a 835 g camera drone released in September 2021, with a 50 MP 1/1.28" camera and up to 40 minutes of flight.
It supports automated waypoint missions. It has no onboard RTK or mechanical shutter, so survey-grade output relies on ground control points, standard for this class.
EVO Lite by use
Photo and video
12.5MPeffective (50 MP binned), 1/1.28" sensor
- 4K 60 fps video
- No log profile
Inspection
16xdigital zoom
- Obstacle sensing: forward, backward, downward
Mapping and survey
No RTK
- No mechanical shutter
- No terrain follow
- Waypoint missions
Flight and transport
40minflight time
- Weight 835 g
- EU class C1
- Wind up to 10.7 m/s
- Video link 12 km (FCC)
- 0 to 40 °C
Safety and rules
Remote IDbuilt-in
- No ADS-B receiver
- FASC Prohibited (US)
Flight Time vs Price
Effective Megapixels vs Price i
EVO Lite specifications
Identity
- Manufacturer
- Autel
- Rating
- Known Issues
- Release Date
- Sep 28, 2021
- Availability
- Discontinued
- EU Drone Class
- C1
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €1,057
- Price (US)($)
- $1,149
Links
- Product Page
- autelrobotics.com
- Shop Page
- shop.autelrobotics.com
Physical
- Weight(g)
- 835 g
- Folded Dimensions(mm)
- 210 × 123 × 95 mm
- Unfolded Dimensions(mm)
- 427 × 384 × 95 mm
- Interchangeable Payload
- No
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 40 min
- Max Hover Time(min)
- 38 min
- Max Speed(m/s)
- 18 m/s
- Max Ascent Speed(m/s)
- 5 m/s
- Max Descent Speed(m/s)
- 4 m/s
- Max Flight Distance(km)
- 12 km
- Max Altitude(m)
- 4,000 m
- Wind Resistance(m/s)
- 10.7 m/s
Payload
Camera 1Wide
- Sensor Size
- 1/1.28"
- Sensor Type
- CMOS
- Sensor Area(mm²)
- 71.54 mm²
- Pixel Size(µm)
- 1.22 µm
- Pixel Binning
- Quad Bayer
- Megapixels(MP)
- 50 MP
- Focal Length
- 23mm
- Aperture
- f/1.9
- Field of View
- 85
- Zoom
- 16x Digital
- Focus Type
- Autofocus / Manual
- Focus Range
- 0.5m to ∞
- Mechanical Shutter
- No
- ISO Range
- 100-6400
- Shutter Speed
- 1/8000-8s
- Stabilization Type
- Mechanical Gimbal
- Max Photo Resolution
- 8192x6144
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- Panorama Modes
- Sphere180°Wide AngleVertical
- Video Resolutions
- 4K/60fps2.7K/60fps1080p/120fps
- Max Video Bitrate(Mbps)
- 120 Mbps
- Video Codec
- H.264 (AVC)H.265 (HEVC)
- Video Formats
- MP4MOV
- Color Profiles
- NormalHDR
Gimbal
Gimbal 1
- Stabilization Axes
- 4-Axis
- Tilt Range(°)
- -90° to 30°
- Pan Range(°)
- -80° to 80°
- Roll Range(°)
- 0° to 0°
- Tilt Mechanical Range(°)
- -135° to 45°
- Pan Mechanical Range(°)
- -90° to 90°
- Roll Mechanical Range(°)
- -45° to 45°
- Angular Vibration(°)
- 0 °
Navigation
- GNSS
- GPSGLONASSGalileo
- Hover Accuracy
- Vert: ±0.1m (Vision), ±0.5m (GNSS); Horiz: ±0.3m (Vision), ±1.5m (GNSS)
- RTK
- No
- Obstacle Sensors
- ForwardBackwardDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)
- Forward Sensing Range(m)
- 0.5m to 18m
- Backward Sensing Range(m)
- 0.5m to 18m
- Downward Sensing Range(m)
- 0.5m to 22m
Transmission
- Transmission Protocol
- SkyLink
- Operating Frequency
- 2.4 GHz5.2 GHz5.8 GHz
- Max Range (CE)(km)
- 6 km
- Max Range (FCC)(km)
- 12 km
- Live View Quality
- 2.7K/30fps1080p/30fps
- Latency(ms)
- 200 ms
- Max Download Speed(MB/s)
- 90 MB/s
App
- Flight App
- Autel Sky
- Supported OS
- AndroidiOS
- Mission Types
- Waypoint
Features
- Internal Storage(GB)
- 6 GB
- Max MicroSD(GB)
- 256 GB
- ActiveTrack
- Yes
- Hyperlapse
- Yes
- Night Scene
- Yes
- Remote ID
- Built-in
- ADS-B Receiver
- No
- Expansion Port
- No
- SDK Support
- No
- Parachute
- No
Mapping
- Waypoints
- Yes
- Terrain Follow
- No
Accessories
Battery 1EVO Lite Series Intelligent Flight Battery
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 6,175 mAh
- Capacity (Wh)(Wh)
- 68.7 Wh
- Voltage(V)
- 11.13 V
- Battery Weight(g)
- 309 g
- Charging Time(min)
- 90 min
Propeller 1EVO Lite Series Propellers
- Model
- 8530
- Diameter(mm)
- 216 mm
- Blade Count
- 2
Remote Controller 1EVO Nano/Lite Series Remote Controller
- Model
- 102000621
- Built-in Screen
- No
- Max Operating Time(min)
- 210 min
Charger 1
- Wattage(W)
- 78 W
