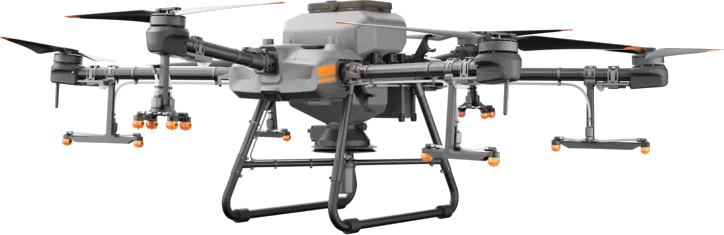

DJI Agras T30

Drone specifications

DJI Agras T30

Specs, price, reviews, and known issues in one place.

No reviews yetWrite the first review
Weight
26,400 g
Max Flight Time
20.5 min
Max Speed
10 m/s
View reviews → Compare this drone →

Agras T30 overview

The DJI Agras T30 is a 26,400 g enterprise drone released in November 2020, with up to 20.5 minutes of flight.

Agras T30 by use

Inspection

IP67water and dust rating

  • Obstacle sensing all around

Mapping and survey

RTK built in

    Flight and transport

    20.5minflight time

    • Weight 26,400 g
    • No EU class
    • Wind up to 6 m/s
    • Video link 7 km (FCC)
    • 0 to 45 °C

    Flight Time vs Price

    Range vs Price

    User Reviews

    0reviews

    No reviews yet. Be the first!

    Write the first review →

    Known Issues

    0known issues

    No known issues reported for this drone yet.

    Report Issue →

    Agras T30 specifications

    Identity

    Manufacturer
    DJI
    Rating
    No reviews
    Known Issues
    No known issues (report one)
    Release Date
    Nov 9, 2020
    Availability
    Discontinued
    EU Drone Class
    None
    US Procurement
    FASC Prohibited
    Platform Type
    Multirotor

    Links

    Product Page
    dji.com

    Physical

    Weight(g)
    26,400 g
    Max Takeoff Weight(g)
    78,000 g
    Folded Dimensions(mm)
    1,170 × 670 × 857 mm
    Unfolded Dimensions(mm)
    2,858 × 2,685 × 790 mm
    Max Payload(g)
    30,000 g
    IP Rating
    IP67
    Operating Temperature(°C)
    0°C to 45°C

    Flight

    Max Flight Time(min)
    20.5 min
    Max Speed(m/s)
    10 m/s
    Max Altitude(m)
    4,500 m
    Wind Resistance(m/s)
    6 m/s
    Max Pitch Angle(°)
    15 °

    Navigation

    GNSS
    GPSGLONASSGalileoBeiDou
    Hover Accuracy
    Vert: ±0.3m (GNSS), ±0.1m (RTK); Horiz: ±0.6m (GNSS), ±0.1m (RTK)
    RTK
    Yes
    Obstacle Sensors
    ForwardBackwardLateralUpwardDownward
    Obstacle Avoidance
    Active (Avoidance)
    Sensing Technology
    Radar

    Transmission

    Transmission Protocol
    OcuSync 2E
    Operating Frequency
    2.4 GHz5.8 GHz
    Max Range (CE)(km)
    4 km
    Max Range (FCC)(km)
    7 km
    Live View Quality
    720p/30fps
    Cellular
    No

    Features

    ActiveTrack
    No
    Hyperlapse
    No
    Night Scene
    No
    NIR Light
    No
    Parachute
    No

    Accessories

    Battery 1BAX501-29000mAh

    Battery Type
    LiPo
    Capacity (mAh)(mAh)
    29,000 mAh
    Capacity (Wh)(Wh)
    1,502 Wh
    Voltage(V)
    51.8 V
    Battery Weight(g)
    10,100 g

    Remote Controller 1RM500-ENT

    Model
    RM500-ENT
    Built-in Screen
    Yes
    Max Operating Time(min)
    120 min
