Drone Compare DJI Mavic Air
Drone specifications

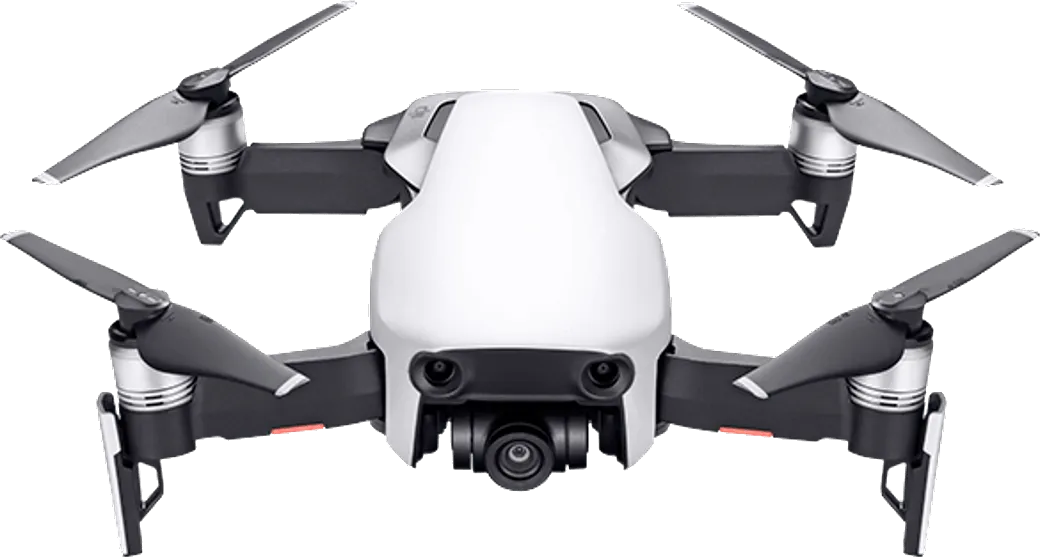

DJI Mavic Air
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $799
- Weight
- 430 g
- Max Flight Time
- 21 min
- Max Speed
- 19 m/s
Mavic Air overview
The DJI Mavic Air is a 430 g camera drone released in January 2018, with a 12 MP 1/2.3" camera and up to 21 minutes of flight.
Mavic Air by use
Photo and video
12MP1/2.3" sensor
- 4K 30 fps video
Inspection
Obstacle sensing: forward, backward, downward
- No IP rating
Flight and transport
21minflight time
- Weight 430 g
- No EU class
- Wind up to 10 m/s
- Video link 4 km (FCC)
- 0 to 40 °C
Flight Time vs Price
Effective Megapixels vs Price i
Mavic Air specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- Jan 23, 2018
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €690
- Price (US)($)
- $799
Links
- Product Page
- dji.com
Physical
- Weight(g)
- 430 g
- Max Takeoff Weight(g)
- 430 g
- Folded Dimensions(mm)
- 168 × 83 × 49 mm
- Unfolded Dimensions(mm)
- 168 × 184 × 64 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 21 min
- Max Hover Time(min)
- 20 min
- Max Speed(m/s)
- 19 m/s
- Max Ascent Speed(m/s)
- 4 m/s
- Max Descent Speed(m/s)
- 3 m/s
- Max Flight Distance(km)
- 10 km
- Max Altitude(m)
- 5,000 m
- Wind Resistance(m/s)
- 10 m/s
- Max Pitch Angle(°)
- 35 °
Payload
Camera 1Camera
- Sensor Size
- 1/2.3"
- Sensor Type
- CMOS
- Sensor Area(mm²)
- 28.07 mm²
- Pixel Size(µm)
- 1.55 µm
- Megapixels(MP)
- 12 MP
- Focal Length
- 24mm
- Aperture
- f/2.8
- Field of View
- 85°
- Focus Type
- Fixed Focus
- Focus Range
- 0.5m to ∞
- Mechanical Shutter
- No
- ISO Range
- 100-3200
- Shutter Speed
- 1/8000-8s
- Max Photo Resolution
- 4056x3040
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- AEB EV Bias
- 0.7 EV
- Panorama Modes
- Sphere180°Wide AngleVertical
- Panorama Formats
- JPEG
- Video Resolutions
- 4K/30fps
- Max Video Bitrate(Mbps)
- 100 Mbps
- Video Codec
- H.264 (AVC)
- Video Formats
- MP4MOV
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 17°
- Pan Range(°)
- 0° to 0°
- Roll Range(°)
- 0° to 0°
- Tilt Mechanical Range(°)
- -100° to 22°
- Pan Mechanical Range(°)
- -12° to 12°
- Roll Mechanical Range(°)
- -30° to 30°
- Angular Vibration(°)
- 0.01 °
Navigation
- GNSS
- GPSGLONASS
- Hover Accuracy
- Vert: ±0.1m (Vision), ±0.5m (GPS); Horiz: ±0.1m (Vision), ±1.5m (GPS)
- RTK
- No
- Obstacle Sensors
- ForwardBackwardDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)
- Forward Sensing Range(m)
- 0.5m to 12m
- Backward Sensing Range(m)
- 0.5m to 10m
- Downward Sensing Range(m)
- 0.1m to 8m
Transmission
- Transmission Protocol
- Enhanced Wi-Fi
- Operating Frequency
- 2.4 GHz5.8 GHz
- Max Range (CE)(km)
- 2 km
- Max Range (FCC)(km)
- 4 km
- Live View Quality
- 720p/30fps
- Latency(ms)
- 200 ms
- Cellular
- No
App
- Flight App
- DJI GO 4
- Supported OS
- AndroidiOS
- Resume from Waypoint
- No
Features
- Internal Storage(GB)
- 8 GB
- Max MicroSD(GB)
- 128 GB
- ActiveTrack
- Yes
- Hyperlapse
- Yes
- Night Scene
- No
- NIR Light
- No
- Laser Rangefinder
- No
- Remote ID
- No
- ADS-B Receiver
- No
- Data Encryption
- No
- Expansion Port
- No
- SDK Support
- No
- Parachute
- No
Accessories
Battery 1Standard
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 2,375 mAh
- Capacity (Wh)(Wh)
- 27.43 Wh
- Voltage(V)
- 11.55 V
- Battery Weight(g)
- 140 g
- Charging Time(min)
- 55 min
Remote Controller 1Remote Controller
- Built-in Screen
- No
Charger 1Standard Charger
- Wattage(W)
- 50 W
- Ports
- 2
