Drone Compare DJI Mavic Pro Platinum
Drone specifications

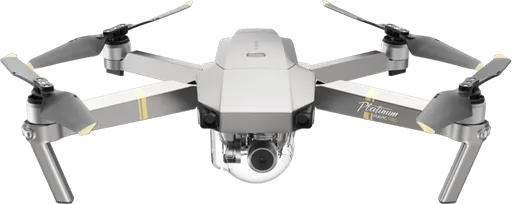

DJI Mavic Pro Platinum
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $1,099
- Weight
- 743 g
- Max Flight Time
- 30 min
- Max Speed
- 18 m/s
Mavic Pro Platinum overview
The DJI Mavic Pro Platinum is a 743 g camera drone released in August 2017, with a 12 MP 1/2.3" camera and up to 30 minutes of flight.
Mavic Pro Platinum by use
Photo and video
12MP1/2.3" sensor
- 4K 30 fps video
- D-Log
Inspection
Obstacle sensing: forward, downward
- No IP rating
Flight and transport
30minflight time
- Weight 743 g
- No EU class
- Wind up to 10 m/s
- Video link 7 km (FCC)
- 0 to 40 °C
Flight Time vs Price
Effective Megapixels vs Price i
Mavic Pro Platinum specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- Aug 31, 2017
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €1,299
- Price (US)($)
- $1,099
Links
- Product Page
- dji.com
Physical
- Weight(g)
- 743 g
- Max Takeoff Weight(g)
- 743 g
- Folded Dimensions(mm)
- 198 × 83 × 83 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 30 min
- Max Hover Time(min)
- 27 min
- Max Speed(m/s)
- 18 m/s
- Max Ascent Speed(m/s)
- 5 m/s
- Max Descent Speed(m/s)
- 3 m/s
- Max Flight Distance(km)
- 13 km
- Max Altitude(m)
- 5,000 m
- Wind Resistance(m/s)
- 10 m/s
- Max Pitch Angle(°)
- 35 °
Payload
Camera 1Camera
- Sensor Size
- 1/2.3"
- Sensor Type
- Sony IMX377
- Sensor Area(mm²)
- 28.07 mm²
- Pixel Size(µm)
- 1.55 µm
- Megapixels(MP)
- 12 MP
- Focal Length
- 26mm
- Aperture
- f/2.2
- Field of View
- 78.8°
- Focus Type
- Autofocus / Manual
- Focus Range
- 0.5m to ∞
- Mechanical Shutter
- No
- ISO Range
- 100-1600 (Photo)100-3200 (Video)
- Shutter Speed
- 8-1/8000
- Max Photo Resolution
- 4000x3000
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- AEB EV Bias
- 0.7 EV
- Panorama Modes
- Sphere180°Wide Angle
- Panorama Formats
- JPEG
- Video Resolutions
- 4K/30fps
- Max Video Bitrate(Mbps)
- 60 Mbps
- Video Codec
- H.264 (AVC)
- Video Formats
- MP4MOV
- Color Profiles
- NormalD-Log
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 30°
- Angular Vibration(°)
- 0.03 °
Navigation
- GNSS
- GPSGLONASS
- Hover Accuracy
- Vert: ±0.1m (Vision), ±0.5m (GPS); Horiz: ±0.3m (Vision), ±1.5m (GPS)
- RTK
- No
- Obstacle Sensors
- ForwardDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)
- Forward Sensing Range(m)
- 0.7m to 15m
- Downward Sensing Range(m)
- 0.3m to 13m
Transmission
- Transmission Protocol
- OcuSync
- Operating Frequency
- 2.4 GHz5.8 GHz
- Max Range (CE)(km)
- 4 km
- Max Range (FCC)(km)
- 7 km
- Live View Quality
- 1080p/30fps720p/30fps
- Latency(ms)
- 160 ms
- Cellular
- No
App
- Flight App
- DJI GO 4
- Supported OS
- AndroidiOS
- Resume from Waypoint
- No
Features
- Internal Storage(GB)
- 0 GB
- Max MicroSD(GB)
- 128 GB
- ActiveTrack
- Yes
- Hyperlapse
- No
- Night Scene
- No
- NIR Light
- No
- Laser Rangefinder
- No
- ADS-B Receiver
- No
- Data Encryption
- No
- Expansion Port
- No
- SDK Support
- Yes
- Parachute
- No
Mapping
- Waypoints
- No
- Terrain Follow
- No
- Raw GNSS Logging
- No
Accessories
Battery 1Intelligent Flight Battery
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 3,830 mAh
- Capacity (Wh)(Wh)
- 43.6 Wh
- Voltage(V)
- 11.4 V
- Battery Weight(g)
- 240 g
- Charging Time(min)
- 80 min
Propeller 1Platinum Propellers
- Model
- 8331
- Diameter(mm)
- 211 mm
- Pitch(mm)
- 79 mm
- Blade Count
- 2
- Propeller Weight(g)
- 12 g
Remote Controller 1Mavic Pro Remote Controller
- Model
- GL200A
- Built-in Screen
- No
- Controller Weight(g)
- 316 g
Charger 1Battery Charger
- Wattage(W)
- 50 W
