Drone Compare DJI Phantom 4 Advanced
Drone specifications

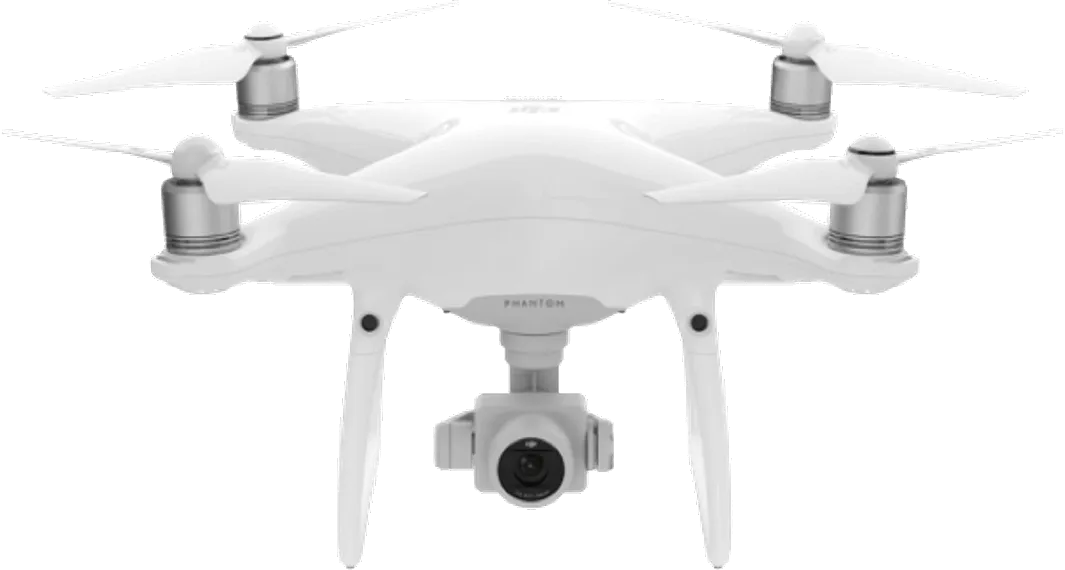

DJI Phantom 4 Advanced
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Weight
- 1,368 g
- Max Flight Time
- 30 min
- Max Speed
- 20 m/s
Phantom 4 Advanced overview
The DJI Phantom 4 Advanced is a 1,368 g camera drone released in April 2017, with a 20 MP 1" camera and up to 30 minutes of flight.
Phantom 4 Advanced by use
Photo and video
20MP1" sensor
- C4K 60 fps video
- D-Log
Inspection
Obstacle sensing: forward, downward
- No IP rating
Mapping and survey
No RTK
- Mechanical shutter
- No terrain follow
- No waypoint missions
Flight and transport
30minflight time
- Weight 1,368 g
- No EU class
- Wind up to 10 m/s
- Video link 7 km (FCC)
- 0 to 40 °C
Flight Time vs Price
Effective Megapixels vs Price i
Phantom 4 Advanced specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- Apr 13, 2017
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Links
- Product Page
- dji.com
Physical
- Weight(g)
- 1,368 g
- Unfolded Dimensions(mm)
- 350 × 350 × 189 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 30 min
- Max Speed(m/s)
- 20 m/s
- Max Ascent Speed(m/s)
- 6 m/s
- Max Descent Speed(m/s)
- 4 m/s
- Max Altitude(m)
- 6,000 m
- Wind Resistance(m/s)
- 10 m/s
- Max Pitch Angle(°)
- 42 °
Payload
Camera 1Wide
- Sensor Size
- 1"
- Sensor Type
- Sony IMX183
- Sensor Area(mm²)
- 116.16 mm²
- Pixel Size(µm)
- 2.41 µm
- Megapixels(MP)
- 20 MP
- Focal Length
- 24mm
- Aperture
- f/2.8-f/11
- Field of View
- 84°
- Focus Type
- Autofocus / Manual
- Focus Range
- 1m to ∞
- Mechanical Shutter
- Yes
- ISO Range
- 100-12800 (Photo)100-6400 (Video)
- Shutter Speed
- 8-1/2000s (Mechanical)8-1/8000s (Electronic)
- Max Photo Resolution
- 5472×3648
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- AEB EV Bias
- 0.7 EV
- Video Resolutions
- C4K/60fps4K/60fps2.7K/60fps1080p/120fps
- Max Video Bitrate(Mbps)
- 100 Mbps
- Video Codec
- H.264 (AVC)H.265 (HEVC)
- Video Formats
- MP4MOV
- Color Profiles
- NormalD-Log
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 30°
- Angular Vibration(°)
- 0.02 °
Navigation
- GNSS
- GPSGLONASS
- Hover Accuracy
- Vert: ±0.1m (Vision); Horiz: ±0.3m (Vision)
- RTK
- No
- Obstacle Sensors
- ForwardDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)
- Forward Sensing Range(m)
- 0.7m to 30m
- Downward Sensing Range(m)
- 0m to 10m
Transmission
- Transmission Protocol
- Lightbridge
- Operating Frequency
- 2.4 GHz
- Max Range (CE)(km)
- 3.5 km
- Max Range (FCC)(km)
- 7 km
- Live View Quality
- 720p/30fps
- Latency(ms)
- 220 ms
App
- Flight App
- DJI GO 4
- Supported OS
- AndroidiOS
- Resume from Waypoint
- No
Features
- Internal Storage(GB)
- 0 GB
- Max MicroSD(GB)
- 128 GB
- ActiveTrack
- Yes
- Hyperlapse
- No
- ADS-B Receiver
- No
Mapping
- Waypoints
- No
- Terrain Follow
- No
- Gimbal Capture Patterns
- Single Direction
- Raw GNSS Logging
- No
Accessories
Battery 1Intelligent Flight Battery
- Model
- PH4-5870mAh-15.2V
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 5,870 mAh
- Capacity (Wh)(Wh)
- 89.2 Wh
- Voltage(V)
- 15.2 V
- Battery Weight(g)
- 468 g
- Charging Time(min)
- 90 min
Propeller 1Low-Noise Propellers
- Model
- 9455S
- Diameter(mm)
- 241 mm
- Blade Count
- 2
Remote Controller 1Remote Controller
- Built-in Screen
- No
Charger 1Battery Charger
- Wattage(W)
- 100 W
