Freefly Alta 6
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Weight
- 4,500 g
- Max Flight Time
- 10 min
Alta 6 overview

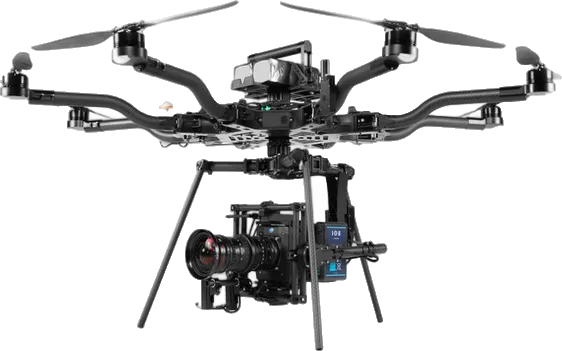

The Freefly Alta 6 is a 4,500 g enterprise drone released in August 2015, with a 7.5 MP Super 35 camera and up to 10 minutes of flight.
Alta 6 by use
Photo and video
7.5MPSuper 35 sensor
- With the ARRI Alexa Mini
- 4K UHD 30 fps video
- ARRI Log C
Inspection
Interchangeable payload
- No obstacle sensing
Flight and transport
10minflight time
- Weight 4,500 g
- No EU class
- -20 to 45 °C
Flight Time vs Price
Effective Megapixels vs Price i
Alta 6 specifications
Identity
- Manufacturer
- Freefly
- Rating
- Known Issues
- Release Date
- Aug 1, 2015
- Availability
- Discontinued
- EU Drone Class
- None
- Platform Type
- Multirotor
Links
- Product Page
- freeflysystems.com
Physical
- Weight(g)
- 4,500 g
- Max Takeoff Weight(g)
- 13,600 g
- Folded Dimensions(mm)
- 515 × 532 × 220 mm
- Unfolded Dimensions(mm)
- 1,145 × 1,000 × 220 mm
- Max Payload(g)
- 6,800 g
- Interchangeable Payload
- Yes
- Operating Temperature(°C)
- -20°C to 45°C
Flight
- Max Flight Time(min)
- 10 min
Payload
Camera 1ARRI Alexa Mini
- Sensor Size
- Super 35
- Sensor Type
- ARRI ALEV III CMOS
- Sensor Area(mm²)
- 513.3 mm²
- Pixel Size(µm)
- 8.25 µm
- Megapixels(MP)
- 7.5 MP
- Focal Length
- 24mm32mm50mm85mm
- Aperture
- T1.9
- Field of View
- 69.655.437.122.3
- Focus Type
- Manual Focus
- Mechanical Shutter
- No
- ISO Range
- 160-3200 (Native EI)
- Shutter Speed
- 5°-356° (Shutter Angle)
- Stabilization Type
- Mechanical Gimbal
- Max Photo Resolution
- 3424x2202
- Image Formats
- RAW (Proprietary)
- Video Resolutions
- 4K UHD/30fps3.4K/30fps2.8K/48fps1080p/200fps
- Max Video Bitrate(Mbps)
- 3,800 Mbps
- Video Codec
- ProRes 4444 XQProRes 4444ProRes 422 HQ
- Video Formats
- MXFMOV
- Color Profiles
- ARRI Log CNormal
Gimbal
Gimbal 1Freefly MoVI M10
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 165°
- Pan Range(°)
- -360° to 360°
- Roll Range(°)
- -60° to 60°
Navigation
- GNSS
- GPSGLONASSGalileo
- RTK
- No
- Altitude Source
- Barometer
- Obstacle Avoidance
- None
Features
- ActiveTrack
- No
- ADS-B Receiver
- No
- Data Encryption
- No
- Expansion Port
- No
- SDK Support
- No
- Parachute
- No
Accessories
Battery 1Freefly ALTA Flight Battery Pack (16Ah)
- Model
- 910-00193
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 16,000 mAh
- Capacity (Wh)(Wh)
- 355 Wh
- Voltage(V)
- 22.2 V
Propeller 1Freefly ALTA Propeller 18x6
- Model
- 18x6
- Diameter(mm)
- 457 mm
- Pitch(mm)
- 152 mm
- Blade Count
- 2
