Drone Compare Freefly Alta X
Drone specifications
Freefly Alta X
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $32,495
- Weight
- 10,860 g
- Max Flight Time
- 50 min
- Max Speed
- 26 m/s
Alta X overview

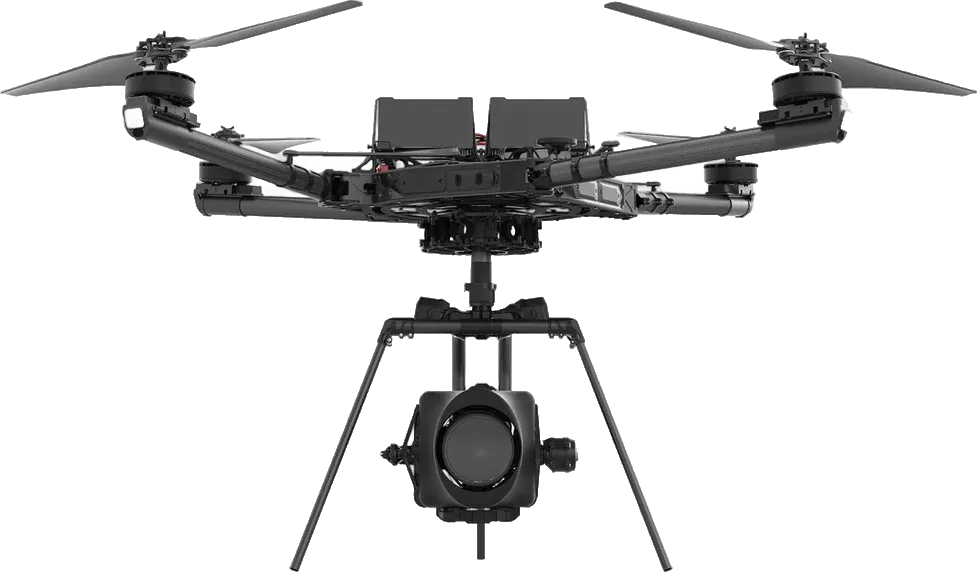

The Freefly Alta X is a 10,860 g enterprise drone released in September 2019, with a 19.9 MP Super 35 camera and up to 50 minutes of flight.
It supports automated waypoint missions. With optional add-on RTK, it's set up for accurate mapping, though it has no mechanical shutter.
Alta X by use
Photo and video
19.9MPSuper 35 sensor
- With the RED Komodo 6K
- 6K 40 fps video
- No log profile
Inspection
IP43water and dust rating
- Interchangeable payload
- No obstacle sensing
Mapping and survey
RTKadd-on
- No mechanical shutter
- Terrain follow
- Raw GNSS logging for PPK
- Waypoint missions
Flight and transport
50minflight time
- Weight 10,860 g
- No EU class
- Wind up to 10 m/s
- Video link 20 km (FCC)
- -20 to 50 °C
Safety and rules
No ADS-B receiver
- Blue UAS Cleared (US)
- Green UAS Certified (US)
Flight Time vs Price
Effective Megapixels vs Price i
Alta X specifications
Identity
- Manufacturer
- Freefly
- Rating
- Known Issues
- Release Date
- Sep 10, 2019
- Availability
- Available
- EU Drone Class
- None
- US Procurement
- Blue UAS ClearedGreen UAS Certified
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €29,895
- Price (US)($)
- $32,495
Links
- Product Page
- freeflysystems.com
- Shop Page
- store.freeflysystems.com
Physical
- Weight(g)
- 10,860 g
- Max Takeoff Weight(g)
- 34,860 g
- Folded Dimensions(mm)
- 877 × 877 × 387 mm
- Unfolded Dimensions(mm)
- 1,415 × 1,415 × 387 mm
- Max Payload(g)
- 15,060 g
- Interchangeable Payload
- Yes
- IP Rating
- IP43
- Operating Temperature(°C)
- -20°C to 50°C
Flight
- Max Flight Time(min)
- 50 min
- Max Speed(m/s)
- 26 m/s
- Max Descent Speed(m/s)
- 4 m/s
- Max Flight Distance(km)
- 20 km
- Max Altitude(m)
- 5,000 m
- Wind Resistance(m/s)
- 10 m/s
Payload
Camera 1RED Komodo 6K
- Sensor Size
- Super 35
- Sensor Type
- KOMODO 19.9 MP Global Shutter CMOS
- Sensor Area(mm²)
- 385.69 mm²
- Pixel Size(µm)
- 4.4 µm
- Megapixels(MP)
- 19.9 MP
- Focal Length
- 24-70mm
- Aperture
- f/2.8
- Field of View
- 65.324.6
- Focus Type
- Autofocus / Manual
- Mechanical Shutter
- No
- ISO Range
- 250-12800 (Native)
- Shutter Speed
- 1/8000-1/24s (Electronic Global)
- Stabilization Type
- Mechanical Gimbal
- Max Photo Resolution
- 6144x3240
- Image Formats
- RAW (Proprietary)
- Video Resolutions
- 6K/40fps5K/48fps4K/60fps2K/120fps
- Max Video Bitrate(Mbps)
- 1,912 Mbps
- Video Codec
- ProRes 422 HQProRes 422
- Video Formats
- MOV
- Color Profiles
- Normal
Gimbal
Gimbal 1Freefly MoVI Pro
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 165°
- Pan Range(°)
- -360° to 360°
- Roll Range(°)
- -60° to 60°
Navigation
- GNSS
- GPSGLONASSBeiDouGalileo
- RTK
- Add-on
- RTK Horizontal Accuracy
- 1 cm + 1 ppm (RMS)
- RTK Vertical Accuracy
- 1 cm + 1 ppm (RMS)
- Altitude Source
- BarometerGNSS
- Obstacle Avoidance
- None
Transmission
- Transmission Protocol
- Herelink 1.1
- Operating Frequency
- 2.4 GHz
- Antenna Count
- 2
- Max Range (CE)(km)
- 12 km
- Max Range (FCC)(km)
- 20 km
- Live View Quality
- 1080p/60fps720p/30fps
- Latency(ms)
- 110 ms
- Cellular
- No
App
- Flight App
- ALTA QGroundControl
- Supported OS
- AndroidiOS
- Mission Types
- Waypoint
Features
- ActiveTrack
- No
- ADS-B Receiver
- No
- Expansion Port
- Yes
- SDK Support
- Yes
- Parachute
- No
Mapping
- Waypoints
- Yes
- Terrain Follow
- Yes
- Raw GNSS Logging
- Yes
Accessories
Battery 1Freefly 12S 16000mAh
- Model
- 910-00688
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 16,000 mAh
- Capacity (Wh)(Wh)
- 710 Wh
- Voltage(V)
- 44.4 V
- Battery Weight(g)
- 4,470 g
Propeller 133x9.0 Folding
- Diameter(mm)
- 840 mm
- Pitch(mm)
- 230 mm
- Blade Count
- 2
Remote Controller 1Freefly Pilot Pro
- Model
- Pilot Pro
- Built-in Screen
- Yes
- Screen Size(in)
- 8 in
- Screen Resolution
- 1920x1200
- Screen Brightness(nits)
- 600 nits
- Max Operating Time(min)
- 300 min
- Controller Weight(g)
- 1,920 g
Charger 1ISDT X16
- Model
- X16
- Wattage(W)
- 2,200 W
- Ports
- 2
