Drone Compare SJRC F22 S2 PRO
Drone specifications
SJRC F22 S2 PRO
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Weight
- 602 g
- Max Flight Time
- 40 min
- Max Speed
- 9.5 m/s
F22 S2 PRO overview
The SJRC F22 S2 PRO is a 602 g camera drone released in May 2024, with a 12 MP 1/2.5" camera and up to 40 minutes of flight.
It supports automated waypoint missions. It has no onboard RTK or mechanical shutter, so survey-grade output relies on ground control points, standard for this class.
F22 S2 PRO by use
Photo and video
12MP1/2.5" sensor
- 4K 30 fps video
- No log profile
Mapping and survey
No RTK
- No mechanical shutter
- No terrain follow
- Waypoint missions
Flight and transport
40minflight time
- Weight 602 g
- No EU class
- Wind up to 7 m/s
- Video link 6 km (FCC)
- 0 to 40 °C
Flight Time vs Price
Effective Megapixels vs Price i

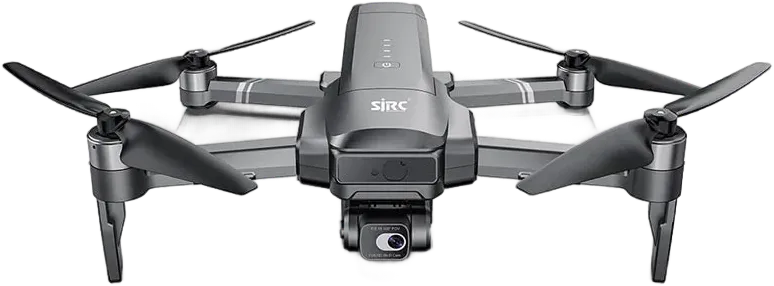

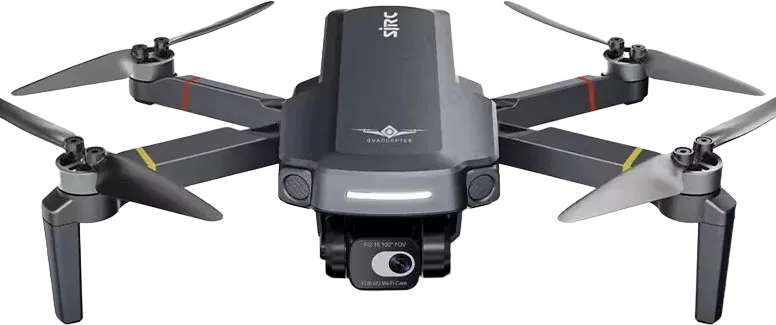

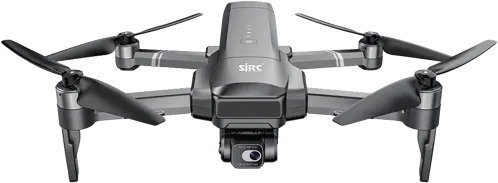

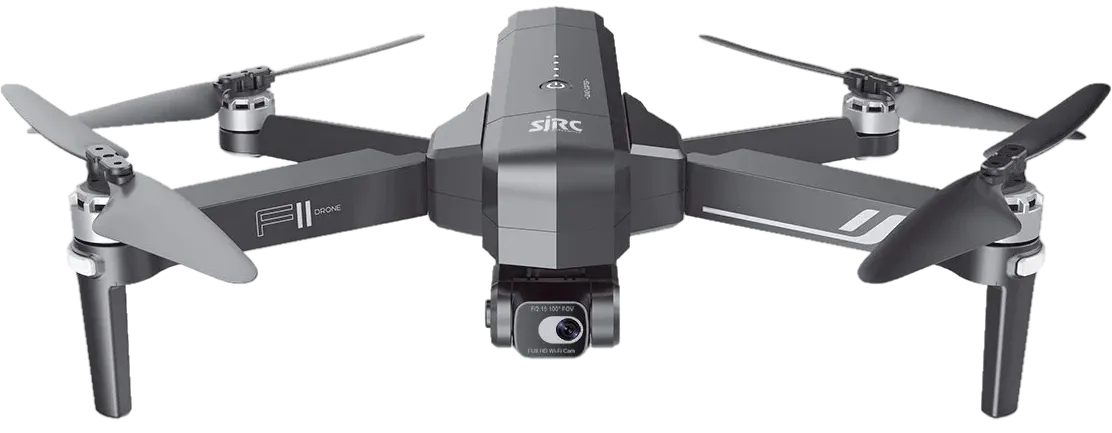

Similar drones
 |  |  | |
|---|---|---|---|
| Camera | |||
| Effective megapixels (MP) | 12 | 12same | 12.50.5 MP more |
| Sensor size | 1/2.5" | 1/2.5"same | 1"larger |
| Best video mode | 4K 30 fps | 4K 30 fps | 4K 120 fps |
| Flight | |||
| Flight time (min) | 40 | 355 min less | 455 min more |
| Weight | 602 g | 588 g2 % lighter | 724 g20 % heavier |
| Max range (FCC) | 6 km | 3.5 km42 % less | 20 km233 % more |
| Wind resistance | 7 m/s | 7 m/ssame | 12 m/s71 % more |
| Obstacle sensing | None | None | All around |
| Pricing | |||
| Price (US) | Not stored | $262 | $1,099 |
F22 S2 PRO specifications
Identity
- Manufacturer
- SJRC
- Rating
- Known Issues
- Release Date
- May 1, 2024
- Availability
- Discontinued
- EU Drone Class
- None
- Platform Type
- Multirotor
Physical
- Weight(g)
- 602 g
- Folded Dimensions(mm)
- 202 × 107 × 83 mm
- Unfolded Dimensions(mm)
- 350 × 350 × 83 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 40 min
- Max Speed(m/s)
- 9.5 m/s
- Max Speed (EU)(m/s)
- 9.5 m/s
- Max Ascent Speed(m/s)
- 3 m/s
- Max Descent Speed(m/s)
- 2 m/s
- Max Altitude(m)
- 500 m
- Wind Resistance(m/s)
- 7 m/s
Payload
Camera 1Wide
- Sensor Size
- 1/2.5"
- Sensor Type
- CMOS
- Sensor Area(mm²)
- 24.71 mm²
- Pixel Size(µm)
- 1.55 µm
- Megapixels(MP)
- 12 MP
- Focal Length
- 24mm
- Aperture
- f/2.5
- Field of View
- 100°
- Focus Type
- Fixed Focus
- Mechanical Shutter
- No
- ISO Range
- 100-3200
- Max Photo Resolution
- 3840x2160
- Image Formats
- JPEG
- Panorama Formats
- JPEG
- Video Resolutions
- 4K/30fps
- Max Video Bitrate(Mbps)
- 42 Mbps
- Video Codec
- H.265 (HEVC)
- Video Formats
- MP4
- Color Profiles
- Normal
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 2-Axis
- Tilt Range(°)
- -80° to 0°
- Pan Range(°)
- 0° to 0°
- Roll Range(°)
- 0° to 0°
- Tilt Mechanical Range(°)
- -100° to 70°
- Roll Mechanical Range(°)
- -35° to 35°
Navigation
- GNSS
- GPSGLONASS
- RTK
- No
- Altitude Source
- Barometer
- Recovery Mode
- Return to Home
- Obstacle Sensors
- Downward
- Obstacle Avoidance
- None
- Sensing Technology
- Vision (Binocular)
Transmission
- Transmission Protocol
- 802.11a / 802.11n20 / 802.11n40
- Operating Frequency
- 5.8 GHz
- Antenna Count
- 2
- Max Range (CE)(km)
- 6 km
- Max Range (FCC)(km)
- 6 km
- Live View Quality
- 720p/30fps
- Cellular
- No
App
- Flight App
- SJ F PRO
- Supported OS
- AndroidiOS
- Resume from Waypoint
- No
- Mission Types
- Waypoint
Features
- Internal Storage(GB)
- 0 GB
- Max MicroSD(GB)
- 256 GB
- ActiveTrack
- No
- Hyperlapse
- No
- Night Scene
- No
- NIR Light
- No
- Laser Rangefinder
- No
- Remote ID
- No
- ADS-B Receiver
- No
- Data Encryption
- No
- Expansion Port
- No
- SDK Support
- No
- Prop Guards
- Add-on
- Parachute
- No
Mapping
- Waypoints
- Yes
- Terrain Follow
- No
- Raw GNSS Logging
- No
Accessories
Battery 1Intelligent Flight Battery
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 3,500 mAh
- Capacity (Wh)(Wh)
- 38.85 Wh
- Voltage(V)
- 11.1 V
- Battery Weight(g)
- 245 g
- Charging Time(min)
- 120 min
Propeller 1Standard
- Diameter(mm)
- 190 mm
- Pitch(mm)
- 96.5 mm
- Blade Count
- 2
- Propeller Weight(g)
- 4.2 g
Remote Controller 1Standard RC
- Model
- F5003T
- Built-in Screen
- No
- Max Operating Time(min)
- 150 min
- Controller Weight(g)
- 325 g
