Drone Compare DJI Matrice 300 RTK
Drone specifications

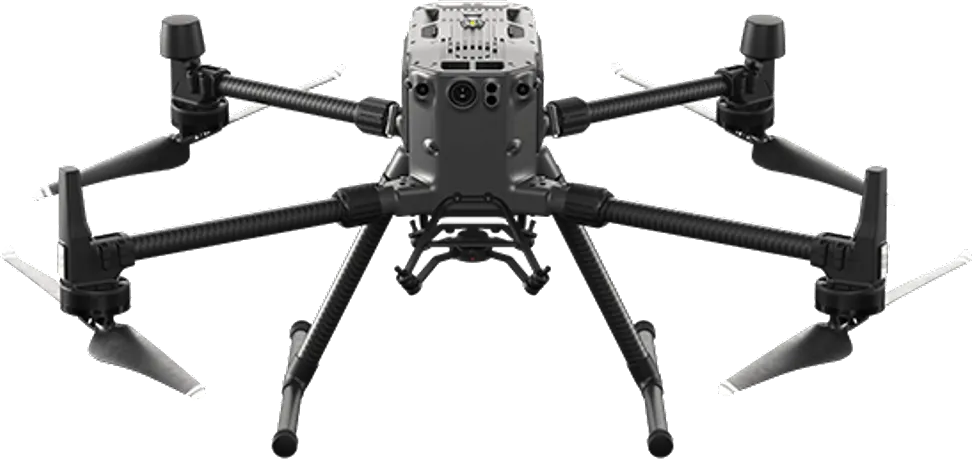

DJI Matrice 300 RTK
Also known as M300 RTK
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $15,999
- Weight
- 6,300 g
- Max Flight Time
- 55 min
- Max Speed
- 23 m/s
Matrice 300 RTK overview
The DJI Matrice 300 RTK is a 6,300 g mapping drone released in May 2020, with a 45 MP Full Frame camera and up to 55 minutes of flight.
It supports waypoint missions (up to 65,535 waypoints). At 120 m the Zenmuse P1 resolves about 2.19 cm/px, one photo covers about 2.15 ha and one flight maps up to 248.8 ha. With onboard RTK and a mechanical shutter, it's set up for survey-grade mapping.
Matrice 300 RTK by use
Photo and video
45MPFull Frame sensor
- With the Zenmuse P1
- 4K 60 fps video
Inspection
IP45water and dust rating
- Interchangeable payload
- Obstacle sensing all around
Mapping and survey
2.19cm/pxat 120 m
- Mechanical shutter
- RTK built in
- Terrain follow
- Raw GNSS logging for PPK
- Waypoints, up to 65,535
Flight and transport
55minflight time
- Weight 6,300 g
- No EU class
- Wind up to 12 m/s
- Video link 15 km (FCC)
- -20 to 50 °C
Safety and rules
Remote IDbuilt-in
- ADS-B receiver
- Data encryption
- FASC Prohibited (US)
Flight Time vs Price
Effective Megapixels vs Price i
Matrice 300 RTK mapping at 120 m
Side view
The drone and the pixel mark are drawn enlarged. Everything else is to scale.
Drawn to scale for the Zenmuse P1 camera flying 120 m above flat ground.
- One photo covers
- 2.15ha
- 180 x 120 m on the ground
- Survey speed
- 54km/h
- Photo size, pixels
- 8192 x 5460
- Accuracy, horizontal
- 3cm
- Accuracy, vertical
- 5cm
Area mapped in one flight
248.8ha
About 348 football pitches.
Strips flown at 54 km/h for 70 % of the 55 min flight time.
The small box is one photo.
Matrice 300 RTK specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- May 7, 2020
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €14,000
- Price (US)($)
- $15,999
Links
- Product Page
- enterprise.dji.com
- Shop Page
- store.dji.com
Physical
- Weight(g)
- 6,300 g
- Max Takeoff Weight(g)
- 9,000 g
- Folded Dimensions(mm)
- 430 × 420 × 430 mm
- Unfolded Dimensions(mm)
- 810 × 670 × 430 mm
- Max Payload(g)
- 2,700 g
- Interchangeable Payload
- Yes
- IP Rating
- IP45
- Operating Temperature(°C)
- -20°C to 50°C
Flight
- Max Flight Time(min)
- 55 min
- Max Speed(m/s)
- 23 m/s
- Max Ascent Speed(m/s)
- 6 m/s
- Max Descent Speed(m/s)
- 5 m/s
- Max Altitude(m)
- 5,000 m
- Wind Resistance(m/s)
- 12 m/s
Payload
Camera 1Zenmuse P1
- Sensor Size
- Full Frame
- Sensor Type
- Sony IMX594
- Sensor Area(mm²)
- 858 mm²
- Pixel Size(µm)
- 4.4 µm
- Megapixels(MP)
- 45 MP
- Focal Length
- 24mm35mm50mm
- Aperture
- f/2.8-f/16
- Zoom
- N/A
- Focus Type
- Fixed Focus
- Focus Range
- 0.65-0.93 to ∞
- Mechanical Shutter
- Yes
- ISO Range
- 100-25600 (Photo)100-25600 (Video)
- Shutter Speed
- 1/2000-1s (Mechanical)1/8000-1s (Electronic)
- Max Photo Resolution
- 8192x5460
- Image Formats
- JPEGDNG (RAW)
- Min Photo Interval
- 0.7s (JPEG)
- Video Resolutions
- 4K/60fpsFHD/60fps
- Video Codec
- H.264 (AVC)
- Video Formats
- MP4MOV
Gimbal
Gimbal 1P1 Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -130° to 40°
- Pan Range(°)
- -320° to 320°
- Roll Range(°)
- -55° to 55°
- Tilt Mechanical Range(°)
- -130° to 40°
- Pan Mechanical Range(°)
- -320° to 320°
- Roll Mechanical Range(°)
- -55° to 55°
- Angular Vibration(°)
- 0.01 °
Navigation
- GNSS
- GPSGLONASSBeiDouGalileo
- Hover Accuracy
- Vert: ±0.1m (Vision), ±0.5m (GNSS), ±0.1m (RTK); Horiz: ±0.3m (Vision), ±1.5m (GNSS), ±0.1m (RTK)
- RTK
- Yes
- RTK Horizontal Accuracy
- 1 cm + 1 ppm (RMS)
- RTK Vertical Accuracy
- 1.5 cm + 1 ppm (RMS)
- Obstacle Sensors
- ForwardBackwardLateralUpwardDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)Infrared (ToF)
- Forward Sensing Range(m)
- 0.7m to 40m
- Backward Sensing Range(m)
- 0.7m to 40m
- Lateral Sensing Range(m)
- 0.7m to 40m
- Downward Sensing Range(m)
- 0.6m to 30m
- Upward Range(m)
- 0.6m to 30m
Transmission
- Transmission Protocol
- OcuSync 2E
- Operating Frequency
- 2.4 GHz5.8 GHz
- Max Range (CE)(km)
- 8 km
- Max Range (FCC)(km)
- 15 km
- Live View Quality
- 1080p/30fps
- Cellular
- No
App
- Flight App
- DJI Pilot
- Supported OS
- Android
- Resume from Waypoint
- Yes
- Mission Types
- WaypointAreaCorridorObliqueLinear
Features
- Internal Storage(GB)
- 0 GB
- Max MicroSD(GB)
- 512 GB
- ActiveTrack
- No
- Hyperlapse
- No
- Night Scene
- No
- NIR Light
- No
- Laser Rangefinder
- No
- Remote ID
- Built-in
- ADS-B Receiver
- Yes
- Data Encryption
- Yes
- Expansion Port
- Yes
- SDK Support
- Yes
- Parachute
- No
Mapping
- Waypoints
- Yes
- Max Waypoints
- 65,535
- Terrain Follow
- Yes
- Gimbal Capture Patterns
- Single Direction5-Direction (+)
- Raw GNSS Logging
- Yes
Mapping Performance 1Zenmuse P1
- GSD at 120m(cm/px)
- 2.19 cm/px
- Frame Coverage at 120m(ha)
- 2.15 ha
- Flight Coverage at 120m(ha)
- 248.8 ha
- Max Survey Speed(km/h)
- 54 km/h
- Horizontal Accuracy(cm)
- 3 cm
- Vertical Accuracy(cm)
- 5 cm
Accessories
Battery 1TB60
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 5,935 mAh
- Capacity (Wh)(Wh)
- 274 Wh
- Voltage(V)
- 52.8 V
- Battery Weight(g)
- 1,350 g
Remote Controller 1DJI Smart Controller Enterprise
- Built-in Screen
- Yes
- Screen Size(in)
- 5.5 in
- Screen Resolution
- 1920x1080
- Screen Brightness(nits)
- 1,000 nits
- Max Operating Time(min)
- 150 min
- Controller Weight(g)
- 1,050 g
Charger 1BS60 Battery Station
- Wattage(W)
- 1,070 W
