Drone Compare DJI Phantom 3 Advanced
Drone specifications

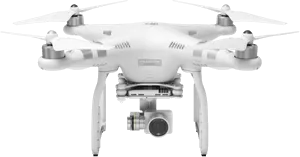

DJI Phantom 3 Advanced
Specs, price, reviews, and known issues in one place.
No reviews yetWrite the first review
- Price (US)
- $999
- Weight
- 1,280 g
- Max Flight Time
- 23 min
- Max Speed
- 16 m/s
Phantom 3 Advanced overview
The DJI Phantom 3 Advanced is a 1,280 g camera drone released in April 2015, with a 12.4 MP 1/2.3" camera and up to 23 minutes of flight.
It supports automated waypoint missions. At 120 m the Wide resolves about 5.12 cm/px, and one photo covers about 3.14 ha. It has no onboard RTK or mechanical shutter, so survey-grade output relies on ground control points, standard for this class.
Phantom 3 Advanced by use
Photo and video
12.4MP1/2.3" sensor
- 2.7K 30 fps video
- D-Log
Mapping and survey
5.12cm/pxat 120 m
- No mechanical shutter
- No RTK
- No terrain follow
- Waypoint missions
Flight and transport
23minflight time
- Weight 1,280 g
- No EU class
- Wind up to 10 m/s
- Video link 5 km (FCC)
- 0 to 40 °C
Flight Time vs Price
Effective Megapixels vs Price i
Phantom 3 Advanced mapping at 120 m
Side view
The drone and the pixel mark are drawn enlarged. Everything else is to scale.
Drawn to scale for the Wide camera flying 120 m above flat ground.
- One photo covers
- 3.14ha
- 205 x 154 m on the ground
- Photo size, pixels
- 4000 x 3000
Phantom 3 Advanced specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- Apr 8, 2015
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €1,099
- Price (US)($)
- $999
Links
- Product Page
- dji.com
Physical
- Weight(g)
- 1,280 g
- Unfolded Dimensions(mm)
- 350 × 350 × 195 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 23 min
- Max Speed(m/s)
- 16 m/s
- Max Ascent Speed(m/s)
- 5 m/s
- Max Descent Speed(m/s)
- 3 m/s
- Max Altitude(m)
- 6,000 m
- Wind Resistance(m/s)
- 10 m/s
- Max Pitch Angle(°)
- 35 °
Payload
Camera 1Wide
- Sensor Size
- 1/2.3"
- Sensor Type
- Sony Exmor IMX117CQT
- Sensor Area(mm²)
- 28.83 mm²
- Pixel Size(µm)
- 1.55 µm
- Megapixels(MP)
- 12.4 MP
- Focal Length
- 20mm
- Aperture
- f/2.8
- Field of View
- 94°
- Zoom
- None
- Focus Type
- Fixed Focus
- Focus Range
- ∞
- Mechanical Shutter
- No
- ISO Range
- 100-1600 (Photo)100-3200 (Video)
- Shutter Speed
- 1/8000-8s
- Max Photo Resolution
- 4000×3000
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- AEB EV Bias
- 0.7 EV
- Video Resolutions
- 2.7K/30fps1080p/60fps1080p/30fps720p/60fps
- Max Video Bitrate(Mbps)
- 40 Mbps
- Video Codec
- H.264 (AVC)
- Video Formats
- MP4MOV
- Color Profiles
- NormalD-Log
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 30°
- Pan Range(°)
- 0° to 0°
- Roll Range(°)
- 0° to 0°
- Angular Vibration(°)
- 0.02 °
Navigation
- GNSS
- GPSGLONASS
- Hover Accuracy
- Vert: ±0.1m (Vision), ±0.5m (GPS); Horiz: ±0.3m (Vision), ±1.5m (GPS)
- RTK
- No
- Obstacle Sensors
- Downward
- Obstacle Avoidance
- None
- Sensing Technology
- Vision (Binocular)
Transmission
- Transmission Protocol
- Lightbridge
- Operating Frequency
- 2.4 GHz
- Max Range (CE)(km)
- 3.5 km
- Max Range (FCC)(km)
- 5 km
- Live View Quality
- 720p
- Latency(ms)
- 220 ms
- Cellular
- No
App
- Flight App
- DJI GO
- Supported OS
- AndroidiOS
- Resume from Waypoint
- No
Features
- Max MicroSD(GB)
- 64 GB
- ActiveTrack
- No
- Hyperlapse
- No
- Night Scene
- No
- NIR Light
- No
- ADS-B Receiver
- No
- Parachute
- No
Mapping
- Waypoints
- Yes
- Terrain Follow
- No
- Gimbal Capture Patterns
- Single Direction
- Raw GNSS Logging
- No
Mapping Performance 1Wide
- GSD at 120m(cm/px)
- 5.12 cm/px
- Frame Coverage at 120m(ha)
- 3.14 ha
Accessories
Battery 1Intelligent Flight Battery
- Model
- PH3-4480mAh-15.2V
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 4,480 mAh
- Capacity (Wh)(Wh)
- 68 Wh
- Voltage(V)
- 15.2 V
- Battery Weight(g)
- 365 g
- Charging Time(min)
- 67 min
Propeller 1Self-Tightening Propellers
- Model
- 9450
- Diameter(mm)
- 240 mm
- Pitch(mm)
- 127 mm
- Blade Count
- 2
Remote Controller 1Remote Controller
- Model
- GL300A
- Built-in Screen
- No
Charger 157W Battery Charger
- Wattage(W)
- 57 W
