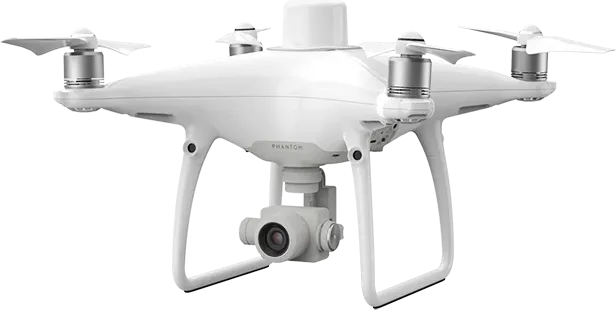

DJI Phantom 4 RTK
DJI Phantom 4 RTK
Also known as P4 RTK
Specs, price, reviews, and known issues in one place.
- Price (US)
- $5,999
- Weight
- 1,391 g
- Max Flight Time
- 30 min
- Max Speed
- 16.11 m/s
Phantom 4 RTK overview
The DJI Phantom 4 RTK is a 1,391 g mapping drone released in October 2018, with a 20 MP 1" camera and up to 30 minutes of flight.
It supports automated waypoint missions. At 120 m the Wide resolves about 3.29 cm/px, one photo covers about 2.16 ha and one flight maps up to 127 ha. With onboard RTK and a mechanical shutter, it's set up for survey-grade mapping.
Phantom 4 RTK by use
Photo and video
20MP1" sensor
- 4K 30 fps video
- D-Log
Inspection
Obstacle sensing: forward, backward, lateral, downward
- No IP rating
Mapping and survey
3.29cm/pxat 120 m
- Mechanical shutter
- RTK built in
- Terrain follow
- Raw GNSS logging for PPK
- Waypoint missions
Flight and transport
30minflight time
- Weight 1,391 g
- No EU class
- Wind up to 10 m/s
- Video link 7 km (FCC)
- 0 to 40 °C
Safety and rules
Remote IDbuilt-in
- No ADS-B receiver
- FASC Prohibited (US)
Flight Time vs Price
Effective Megapixels vs Price i
Phantom 4 RTK mapping at 120 m
Side view
The drone and the pixel mark are drawn enlarged. Everything else is to scale.
Drawn to scale for the Wide camera flying 120 m above flat ground.
- One photo covers
- 2.16ha
- 180 x 120 m on the ground
- Survey speed
- 50.4km/h
- Photo size, pixels
- 5472 x 3648
- Accuracy, horizontal
- 2cm
- Accuracy, vertical
- 3cm
Area mapped in one flight
127ha
About 178 football pitches.
Strips flown at 50.4 km/h for 70 % of the 30 min flight time.
The small box is one photo.
Phantom 4 RTK specifications
Identity
- Manufacturer
- DJI
- Rating
- Known Issues
- Release Date
- Oct 15, 2018
- Availability
- Discontinued
- EU Drone Class
- None
- US Procurement
- FASC Prohibited
- Platform Type
- Multirotor
Pricing
- Price (EU)(€)
- €5,185
- Price (US)($)
- $5,999
Links
- Product Page
- enterprise.dji.com
Physical
- Weight(g)
- 1,391 g
- Unfolded Dimensions(mm)
- 392 × 328 × 222 mm
- Interchangeable Payload
- No
- IP Rating
- None
- Operating Temperature(°C)
- 0°C to 40°C
Flight
- Max Flight Time(min)
- 30 min
- Max Speed(m/s)
- 16.11 m/s
- Max Ascent Speed(m/s)
- 6 m/s
- Max Descent Speed(m/s)
- 3 m/s
- Max Altitude(m)
- 6,000 m
- Wind Resistance(m/s)
- 10 m/s
- Max Pitch Angle(°)
- 35 °
Payload
Camera 1Wide
- Sensor Size
- 1"
- Sensor Type
- Sony IMX183
- Sensor Area(mm²)
- 116.16 mm²
- Pixel Size(µm)
- 2.41 µm
- Megapixels(MP)
- 20 MP
- Focal Length
- 24mm
- Aperture
- f/2.8-f/11
- Field of View
- 84°
- Focus Type
- Autofocus / Manual
- Focus Range
- 1m to ∞
- Mechanical Shutter
- Yes
- ISO Range
- 100-12800 (Photo)100-6400 (Video)
- Shutter Speed
- 8-1/2000s (Mechanical)8-1/8000s (Electronic)
- Max Photo Resolution
- 5472×3648
- Image Formats
- JPEGDNG (RAW)
- AEB
- 3 Frames5 Frames
- AEB EV Bias
- 0.7 EV
- Video Resolutions
- 3840x2160@30fps
- Max Video Bitrate(Mbps)
- 100 Mbps
- Video Codec
- H.264 (AVC)H.265 (HEVC)
- Video Formats
- MP4MOV
- Color Profiles
- NormalD-Log
Gimbal
Gimbal 1Camera Gimbal
- Stabilization Axes
- 3-Axis
- Tilt Range(°)
- -90° to 30°
- Angular Vibration(°)
- 0.02 °
Navigation
- GNSS
- GPSGLONASSGalileoBeiDou
- Hover Accuracy
- Vert: ±0.1m (RTK), ±0.5m (GPS); Horiz: ±0.1m (RTK), ±1.5m (GPS)
- RTK
- Yes
- RTK Horizontal Accuracy
- 1 cm + 1 ppm (RMS)
- RTK Vertical Accuracy
- 1.5 cm + 1 ppm (RMS)
- Obstacle Sensors
- ForwardBackwardLateralDownward
- Obstacle Avoidance
- Active (Avoidance)
- Sensing Technology
- Vision (Binocular)Infrared (ToF)
- Forward Sensing Range(m)
- 0.7m to 30m
- Backward Sensing Range(m)
- 0.7m to 30m
- Lateral Sensing Range(m)
- 0.2m to 7m
- Downward Sensing Range(m)
- 0m to 10m
Transmission
- Transmission Protocol
- OcuSync
- Operating Frequency
- 2.4 GHz5.8 GHz
- Max Range (CE)(km)
- 5 km
- Max Range (FCC)(km)
- 7 km
- Live View Quality
- 720p
- Cellular
- No
App
- Flight App
- DJI GO 4
- Supported OS
- AndroidiOS
- Resume from Waypoint
- Yes
- Mission Types
- WaypointAreaCorridorOblique
Features
- Max MicroSD(GB)
- 128 GB
- ActiveTrack
- No
- Hyperlapse
- No
- Night Scene
- No
- NIR Light
- No
- Remote ID
- Built-in
- ADS-B Receiver
- No
- SDK Support
- Yes
- Parachute
- No
Mapping
- Waypoints
- Yes
- Terrain Follow
- Yes
- Gimbal Capture Patterns
- Single Direction3-Direction5-Direction (+)5-Direction (X)
- Raw GNSS Logging
- Yes
Mapping Performance 1Wide
- GSD at 120m(cm/px)
- 3.29 cm/px
- Frame Coverage at 120m(ha)
- 2.16 ha
- Flight Coverage at 120m(ha)
- 127 ha
- Max Survey Speed(km/h)
- 50.4 km/h
- Horizontal Accuracy(cm)
- 2 cm
- Vertical Accuracy(cm)
- 3 cm
Accessories
Battery 1Intelligent Flight Battery
- Model
- PH4-5870mAh-15.2V
- Battery Type
- LiPo
- Capacity (mAh)(mAh)
- 5,870 mAh
- Capacity (Wh)(Wh)
- 89.2 Wh
- Voltage(V)
- 15.2 V
- Battery Weight(g)
- 468 g
- Charging Time(min)
- 60 min
Propeller 1Low-Noise Propellers
- Model
- 9455S
- Diameter(mm)
- 241 mm
- Blade Count
- 2
Remote Controller 1Ground Station Controller
- Model
- GL300N
- Built-in Screen
- Yes
- Screen Size(in)
- 5.5 in
- Screen Resolution
- 1920×1080
- Screen Brightness(nits)
- 1,000 nits
Charger 1Battery Charger
- Wattage(W)
- 160 W
