How much does the Yuneec H520E-RTK weigh?

The Yuneec H520E-RTK weighs 1892 g.

What EU drone class is the Yuneec H520E-RTK?

The Yuneec H520E-RTK is classified as EU drone class C2.

What is the maximum flight time of the Yuneec H520E-RTK?

The Yuneec H520E-RTK has a maximum flight time of 25 min.

What is the top speed of the Yuneec H520E-RTK?

The Yuneec H520E-RTK has a maximum speed of 13.5 m/s.

What is the price of the Yuneec H520E-RTK?

The Yuneec H520E-RTK has a manufacturer's suggested retail price of $4,128.

What sensor does the Yuneec H520E-RTK have?

The Yuneec H520E-RTK has a 1" camera sensor.

What is the max photo resolution of the Yuneec H520E-RTK?

The Yuneec H520E-RTK can capture photos at up to 5472x3648.

Drone Compare

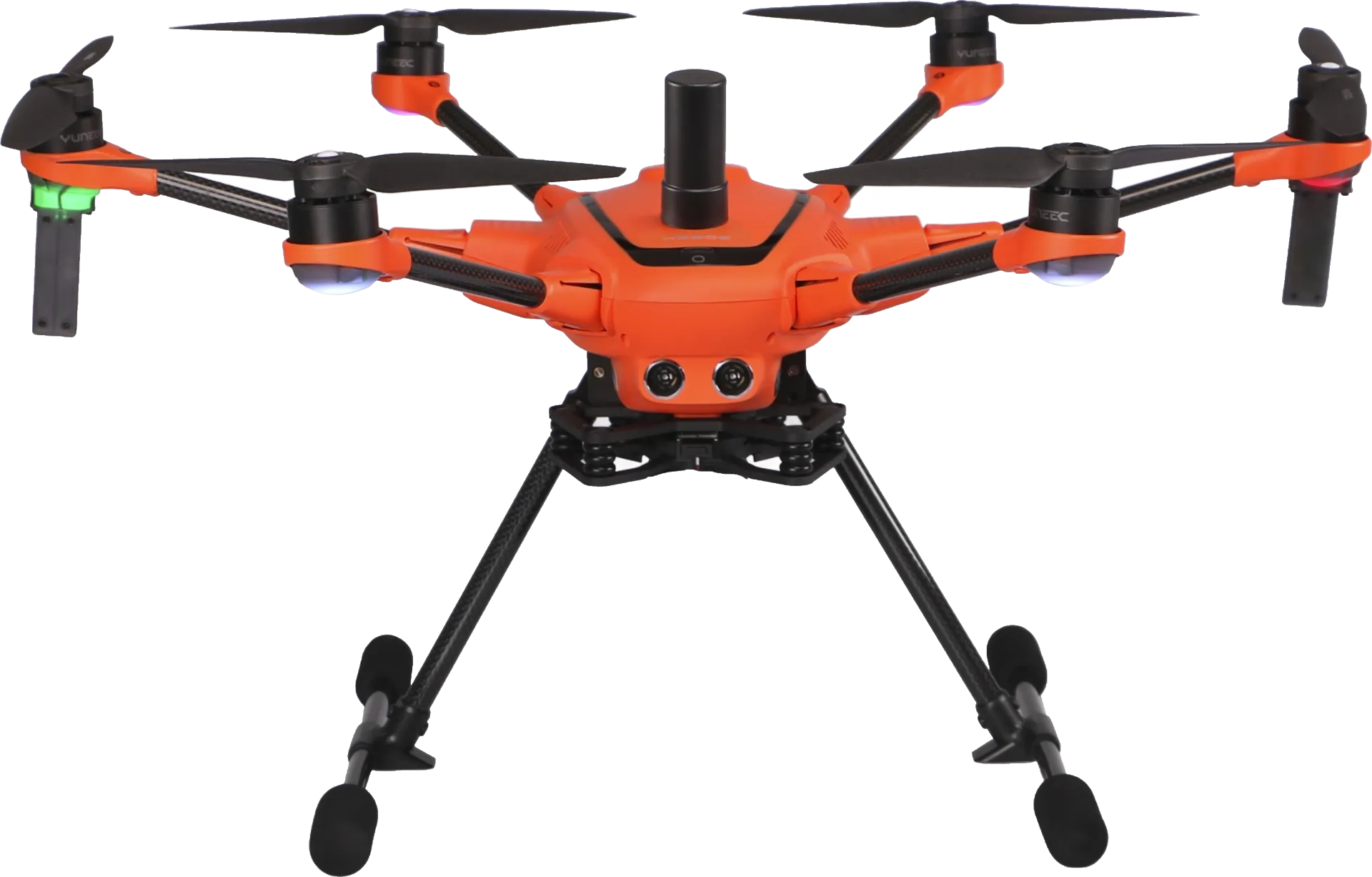

Yuneec H520E-RTK

Price (US)$4,128

Weight1,892 g

Max Flight Time25 min

Max Speed13.5 m/s

View reviews → Compare this drone →

Quick Highlights

RTK

Yes

Sensor Size

Megapixels

20 MP

Mechanical Shutter

✗ No

IP Rating

None

Obstacle Avoidance

Active (Avoidance)

Horizontal Accuracy

1 cm

Frame Coverage at 120m

2.35 ha

See full specifications →

Flight Time vs Price

Megapixels vs Price

User Reviews

No reviews yet — be the first!

Write the first review →

Known Issues

No known issues reported for this drone yet.

Report Issue →

Full Specifications

Identity8

Manufacturer

Yuneec

Rating

No reviews

Known Issues

No known issues (report one)

Release Date

Oct 14, 2020

Availability

Available

EU Drone Class

US Procurement

—

Platform Type

Multirotor

Pricing2

Price (EU) (€)

€3,499

Price (US) ($)

$4,128

Links2

Product Page

https://us.yuneec.com/h520-series/

Shop Page

https://shop.yuneec.com/H520E-RTK/YUNH520E-RTKEU

Physical5

Weight (g)

1,892 g

Max Takeoff Weight (g)

—

Folded Dimensions (mm)

—

IP Rating

None

Operating Temperature (°C)

0°C to 40°C

Flight8

Max Flight Time (min)

25 min

Max Speed (m/s)

13.5 m/s

Max Speed (EU) (m/s)

—

Max Ascent Speed (m/s)

4 m/s

Max Descent Speed (m/s)

2.5 m/s

Max Flight Distance (km)

—

Max Altitude (m)

5,000 m

Wind Resistance (m/s)

20.1 m/s

Payload1

Camera1

Camera 1

E90X

Sensor Size

Pixel Binning

—

Megapixels (MP)

20 MP

Focal Length

23mm

Aperture

f/2.8

Zoom

8x Digital

Mechanical Shutter

✗ No

ISO Range

100-6400

Shutter Speed

1/8000-4s

Stabilization Type

Mechanical Gimbal

Max Photo Resolution

5472x3648

Image Formats

JPEGDNG (RAW)

AEB

—

AEB EV Bias

—

Panorama Modes

—

Panorama Formats

—

Video Resolutions

4K/60fps

Video Codec

—

Video Formats

—

Color Profiles

—

Gimbal1

Gimbal 1

E90X Gimbal

Stabilization Axes

3-Axis

Tilt Range (°)

-120° to 30°

Pan Range (°)

-165° to 165°

Roll Range (°)

0° to 0°

Navigation9

GNSS

GPSGLONASSGalileoBeiDou

Hover Accuracy

Vert: ±0.5m; Horiz: ±1.5m

RTK

Yes

RTK Horizontal Accuracy

1 cm + 1 ppm (RMS)

RTK Vertical Accuracy

1.5 cm + 1 ppm (RMS)

Obstacle Sensors

Forward

Obstacle Avoidance

Active (Avoidance)

Sensing Technology

Ultrasonic

Sensing Technology (Add-on)

—

Transmission5

Transmission Protocol

OFDM

Max Range (CE) (km)

3.5 km

Max Range (FCC) (km)

6 km

Live View Quality

720p

Cellular

✗ No

App4

Flight App

DataPilot

Supported OS

Android

Resume from Waypoint

✓ Yes

Mission Types

WaypointAreaCorridor

Features13

Internal Storage (GB)

0 GB

Max MicroSD (GB)

—

ActiveTrack

✗ No

Hyperlapse

✗ No

Night Scene

✗ No

NIR Light

✗ No

Laser Rangefinder

✗ No

Laser Rangefinder Range (m)

—

Remote ID

Add-on

ADS-B Receiver

✗ No

Data Encryption

✗ No

Expansion Port

✓ Yes

SDK Support

—

Mapping3

Waypoints

✓ Yes

Terrain Follow

✓ Yes

Raw GNSS Logging

✓ Yes

Cargo3

Delivery Mode

—

Max Range (Loaded) (km)

—

Max Flight Time (Loaded) (min)

—

Accessories4

Battery1

Propeller1

Remote Controller1

Charger1
